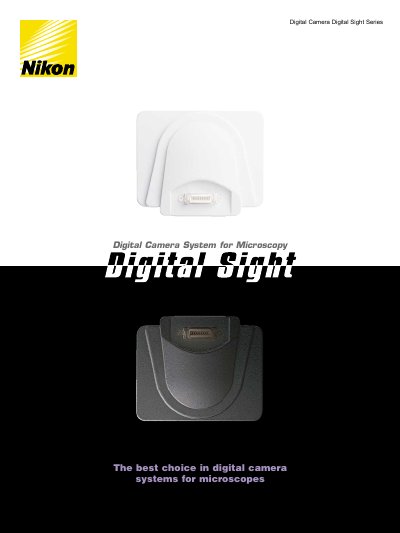

This is an introduction to Nikon's digital camera system, including four cameras: DS-5Mc-U1, DS-5Mc-L1, DS-5M-U1, DS-5M-L1
The Nikon DS-5M Series provides a flexible digital camera system for microscopy, offering both cooled (DS-5Mc) and standard (DS-5M) 5‑megapixel CCD cameras. The system can be controlled via a PC‑connected USB interface or a stand‑alone controller with a built‑in 6.3‑inch LCD monitor, allowing high‑definition, low‑noise imaging for fluorescence, dark‑field, and bright‑field applications.
The manual describes camera heads, control units, software features, and technical specifications. It includes instructions for connecting to Nikon microscopes, using the Act‑2U imaging software, and configuring network or USB connections. Safety warnings and system requirements are also provided.
| CCD sensor | 5.0‑megapixel 2/3‑inch CCD |
|---|---|
| Maximum image resolution | 2560 × 1920 pixels |
| Cooling temperature (cooled model) | -20 °C below ambient |
| Power consumption (camera) | 43 VA |
| Camera head dimensions | 90.6 mm (W) × 40.9 mm (H) × 75.3 mm (D) |
The DS-5M camera can capture images up to 2560 × 1920 pixels.
The camera connects to a computer via a USB 2.0 device port.
