This document introduces a ultra-compact camera type with 1080p full HD resolution, 25ips full frame rate, using H.264 and MJPEG video compression methods. The camera is equipped with Optimum IP-Pro engine and Xacti HD-Pro engine, supports four streams and dual streams, and has features such as focus assist drive and video analysis. The camera also supports SD storage card edge recording, two-way audio and multiple power inputs. Suitable for alarm/backup recording. The camera series provides a variety of styles, including full HD CS mount, color CS mount and day/night CS mount.

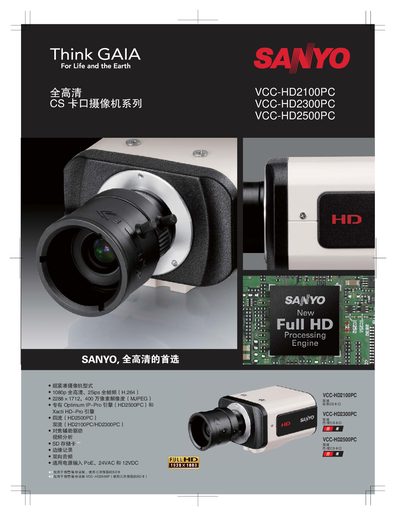

The manual describes SANYO’s full‑HD CS‑mount camcorder series VCC‑HD2100PC, VCC‑HD2300PC and VCC‑HD2500PC. It provides an overview of the camera’s hardware, including a 13‑inch progressive‑scan CMOS sensor, 4‑megapixel resolution, and CS‑mount lens interface.
Detailed sections cover video encoding options (H.264, MJPEG), network protocols, power options (24 V AC, 12‑15 V DC, PoE), environmental ratings, and safety guidelines. Specification tables list illumination requirements, frame rates, dimensions, and power consumption for quick reference. This manual is written in Chinese.
| Image sensor | 13‑inch progressive‑scan CMOS |
|---|---|
| Maximum frame rate | 25 ips at 1920 × 1080 |
| Dimensions | 72.4 × 44.8 × 75.2 mm |
The camcorders use SD/SDHC cards recommended by SANYO for alarm and backup recording.
Supported protocols include TCPIP, UDP, HTTP, HTTPS, SMTP, NTP, DHCP, FTP, DDNS, PRTP and PTSP.
Power consumption is 6.8 W (or 4.6 W in low‑power mode).
