This manual is an instruction manual for the use and precautions of the product.
The NWR-2W is a float‑type water level indication transmitter designed for dams, reservoirs and similar applications. It detects water level by the vertical movement of a float and converts it to a 4‑20 mA current signal.

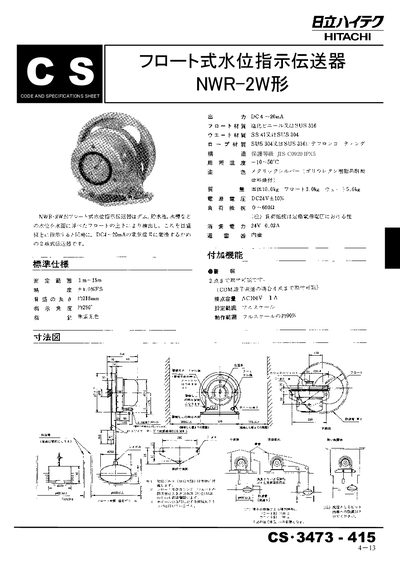

The sheet lists the device’s construction, material options, electrical characteristics, measurement range, accuracy and optional alarm contacts, providing the data needed for selection and installation. This manual is written in Japanese.
| Output signal | DC 4‑20 mA |
|---|---|
| Float material | PVC or SUS 316 |
| Weight material | SS41 or SUS 304 |
| Rope material | SUS304, SUS 316 with Teflon coating |
| Protection rating | IPX5 |
| Operating temperature | -10 °C to 50 °C |
| Power supply | DC 24 V ±10 % |
| Load resistance | 0 Ω – 6000 Ω |
| Measurement range | 1 m – 15 m |
| Accuracy | ±1.0 % FS |
| Weight | Body 10.0 kg, Float 3.0 kg, Weight 5.6 kg |
It provides a DC 4‑20 mA current signal.
The device can measure water levels from 1 m up to 15 m.
The float is made of PVC or SUS 316, and the weight is made of SS41 or SUS 304.
It operates from a DC 24 V supply with a tolerance of ±10 %.
