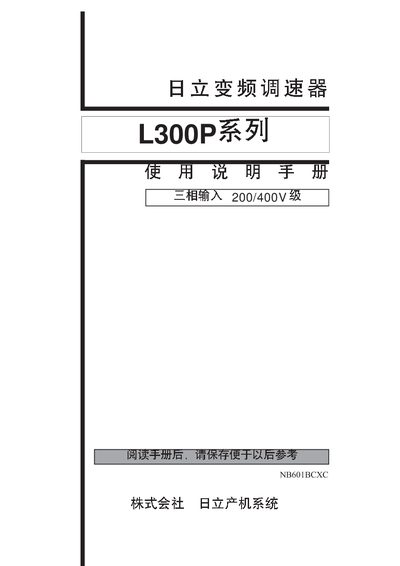

This document is the user manual for L300P 200/400V NB601BCXC, which introduces the features and characteristics, usage methods, installation methods of the product
This manual covers the safety symbols (WARNING, CAUTION, NOTE) and detailed precautions for installing, wiring, and maintaining the L300P series frequency converter. It emphasizes the need for qualified personnel, proper grounding, and the use of appropriate circuit breakers and protective devices.
Additional sections describe EMC compliance for European use, required environmental conditions (temperature, humidity, vibration), cable specifications, and a version record table. The final pages list model variants and basic technical specifications such as input voltage and carrier frequency limits. This manual is written in Chinese.
| Input Voltage | Three‑phase 200 V / 400 V |
|---|---|
| Maximum Motor Wiring Length | < 20 m |
| Operating Temperature Range | -10 °C ~ 40 °C |
| Operating Humidity | 20 % ~ 90 % RH (no condensation) |
