The Hitachi Mobile 5K320 is a 2.5-inch, 5400 RPM hard drive that offers up to 320GB of storage capacity. It features a range of features, including reliable Thermal Fly Height Control (TFC) technology, TrueTrackTM technology, low power consumption and silent SATA 3Gb/s interface. It also supports Enhanced Availability (EA), which allows for 24/7 continuous data access in low-transaction environments.
The Hitachi 5K320 mobile hard disk is a 2.5‑inch drive designed for laptops, gaming consoles and other portable applications. It provides capacities from 80 GB to 320 GB, a SATA 3 Gb/s interface, 5400 RPM speed and a data transfer rate of up to 729 MB/s, while consuming only 1.8 W during read/write and 0.55 W in idle mode.

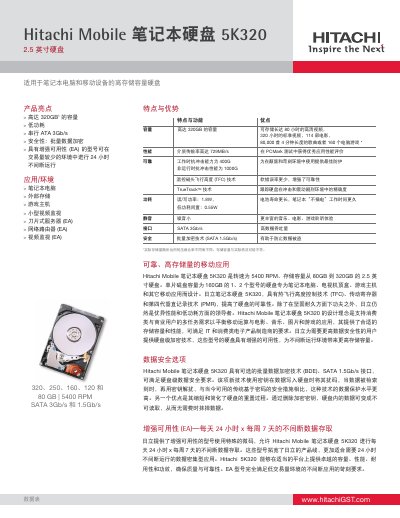

The drive features shock resistance of 400 G during operation and 1000 G when not operating, optional bulk data encryption (BDE) for enhanced security, and enhanced availability for 24 × 7 continuous data access. These specifications make the 5K320 suitable for demanding mobile and data‑intensive environments. This manual is written in Chinese.
| Maximum Capacity | 320 GB |
|---|---|
| Interface | SATA 3 Gb/s |
| Rotational Speed | 5400 RPM |
| Read/Write Power Consumption | 1.8 W |
| Idle Power Consumption | 0.55 W |
| Maximum Data Transfer Rate | 729 MB/s |
| Operating Shock Resistance | 400 G (2 ms) |
| Non‑Operating Shock Resistance | 1000 G (1 ms) |
| Optional Data Encryption | Bulk Data Encryption (BDE) |
The drive is available with up to 320 GB of storage capacity.
It uses a SATA 3 Gb/s interface (also compatible with SATA 1.5 Gb/s).
Yes, the drive offers optional bulk data encryption (BDE).
Read/write power consumption is 1.8 W.
