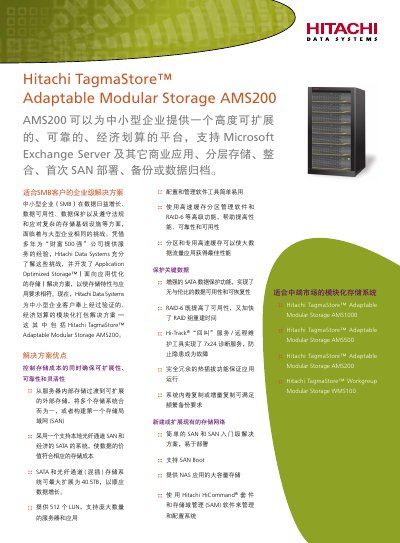

Hitachi TagmaStore™ Adaptable Modular Storage AMS200 is a highly scalable, reliable, and economical platform that supports Microsoft Exchange Server and other business applications, tiered storage, consolidation, first SAN deployment, backup or data archiving.
The Hitachi TagmaStore AMS200 provides a highly scalable, reliable and cost‑effective storage solution for small‑ and medium‑size businesses. It supports mixed SATA and Fibre Channel drives, up to 40.5 TB raw capacity and 512 LUNs, with advanced features such as RAID‑6, online hot‑swap, remote diagnostics and data protection.
Management is handled through the Hitachi HiCommand suite and Storage Area Management (SAM) software, offering tools for caching, replication, snapshotting and multi‑OS compatibility across Windows, Linux, UNIX and virtual environments. This manual is written in Chinese.
| Raw capacity | 40.5 TB |
|---|---|
| Maximum LUNs | 512 |
| Supported RAID levels | RAID‑0, RAID‑1, RAID‑5, RAID‑6, RAID‑0+1 |
| Cache size | 2 GB – 4 GB |
| Controller count | 1 or 2 |
The AMS200 can be configured for up to 40.5 TB of raw capacity.
It supports up to 512 logical unit numbers (LUNs).
The system supports RAID‑0, RAID‑1, RAID‑5, RAID‑6 and RAID‑0+1.
Hitachi HiCommand suite and Storage Area Management (SAM) software are used to configure and manage the system.
