This document introduces the technical parameters of the EX-6 series hydraulic shovel, such as model, engine output power, operating weight, and bucket capacity. The hydraulic shovel has strong working capacity and high efficiency.

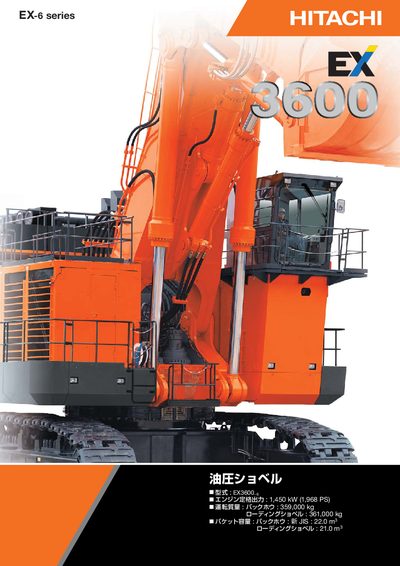

This manual presents the key technical specifications of the Hitachi EX3600 hydraulic excavator, including engine output, operating weight, bucket capacities, and performance data such as ground pressure, swing speed, and travel speed. It also lists dimensions, maximum digging radius and depth, and fluid capacities.
Safety guidelines are included, advising operators to read the manual before use, ensure proper grounding of the machine, and obtain the required operating qualifications. Contact information for Hitachi construction‑machinery training centers is provided. This manual is written in Japanese.
| Engine rated output | 1450 kW (1.968 PS) |
|---|---|
| Operating weight (backhoe) | 359,000 kg |
| Loading shovel weight | 361,000 kg |
| Bucket capacity (backhoe) | 22.0 m³ |
| Ground pressure | 198 kPa |
| Swing speed | 3.2 rpm |
| Travel speed | 2.27 km/h |
| Maximum digging radius | 18.190 |
| Maximum digging depth | 8.580 |
| Fuel tank capacity | 7.450 L |
| Hydraulic oil tank capacity | 4.000 L |
| Maximum bucket opening width | 1.950 m |
The engine is rated at 1450 kW (1.968 PS).
The maximum digging depth is 8.580 (units as listed).
Operators must read the operator’s manual before use and ensure the machine is properly grounded.
The fuel tank holds 7.450 L of diesel.
