Hitachi Travelstar 5K160 is a high-performance, reliable mobile hard drive that uses PMR technology. It is available in capacities up to 160GB and features a low power consumption and excellent shock resistance.
The Hitachi 5K160 mobile hard disk is a 5400 RPM, 5 mm thick drive available in capacities from 40 GB up to 160 GB. It uses both PATA (ATA‑7) and Serial ATA 1.5 Gb/s interfaces and offers low power consumption and robust shock resistance for portable applications.

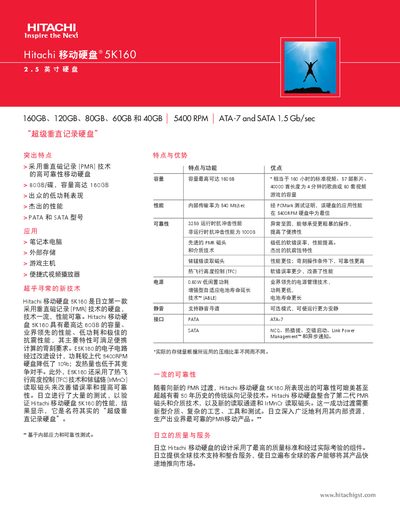

The document lists detailed technical specifications, including performance metrics, power usage, physical dimensions, environmental limits, and support contact information for worldwide customers. This manual is written in Chinese.
| Capacity | 40 GB – 160 GB |
|---|---|
| Rotational Speed | 5400 RPM |
| Interface | ATA‑7 (PATA) and Serial ATA 1.5 Gb/s |
| Average Seek Time | 5.5 ms |
| Maximum Transfer Rate | 100 MB/s (Ultra DMA mode‑5) |
| Operating Temperature | 5 °C – 55 °C |
| Non‑operating Temperature | -40 °C – 65 °C |
| Shock Resistance (operating) | 325 G/2 ms, 160 G/1 ms |
| Shock Resistance (non‑operating) | 1000 G/1 ms |
| Weight | ≈102 g |
The drive is offered in 40 GB, 60 GB, 80 GB, 120 GB, and 160 GB capacities.
It supports both ATA‑7 (PATA) and Serial ATA 1.5 Gb/s interfaces.
The drive operates from 5 °C up to 55 °C.
