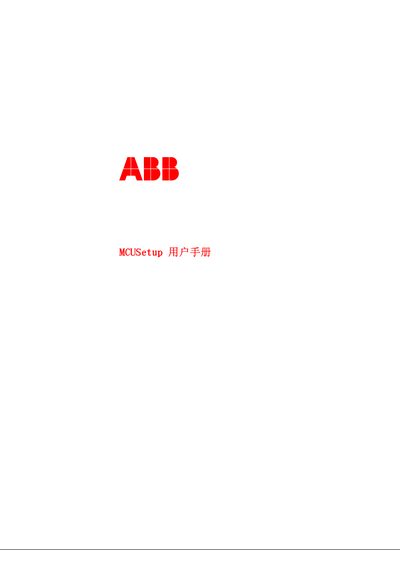

ABB MCUSetup user manual, introduces how to use MCUSetup software to set parameters of M101/M102 device.
The manual introduces MCUSetup, a PC‑based parameter‑setting tool for ABB low‑voltage MI01/MI02 devices. It describes the software’s installation process on Windows 9X/ME/NT/2000/XP systems, required hardware (80486 CPU, 8 MB RAM, 10 MB disk space, 800×600 display), and how to launch the program.
After installation, the guide covers communication setup via RS‑232/485 converters, parameter editing, import/export of .mcu files, simulation of the MD panel, printing options, and user management functions such as creating, modifying, and deleting user accounts. Each operation is illustrated with menu paths and screen descriptions. This manual is written in Chinese.
| Minimum CPU | 80486 or higher |
|---|---|
| Minimum RAM | 8 MB |
| Minimum disk space | 10 MB |
