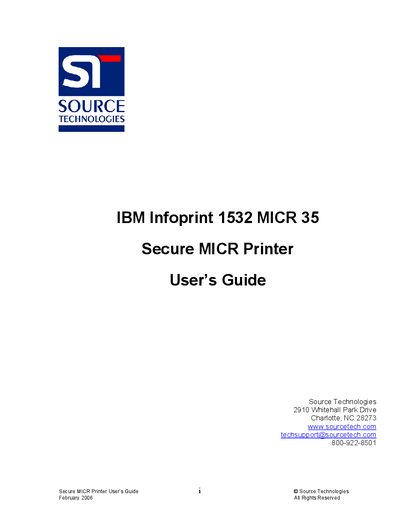

This document is the user guide for Source Technologies Secure MICR Printers. It provides details on printer setup and operations and should be read as a reference for learning more about MICR technology and developing MICR printing applications. The guide is intended to assist IS Technicians and Engineers in using Source Technologies' programmed printers with custom MICR applications. The document also includes information on MICR-related error messages. Every effort has been made to ensure the completeness and accuracy of the information in this document, and any changes or technical inaccuracies will be corrected in subsequent publications.
This manual provides detailed information on installing the Infoprint 1532 MICR 35 Secure MICR Printer, setting up driver defaults, and configuring the printer for MICR document production. It also covers MICR technology basics, check design guidelines, and security features required for financial document processing.
Additional sections describe IBM host programming features, audit trail reporting, error messages, and command sets (PJL, PCL, MICR mode) needed for custom applications and secure printing environments.
| Print Resolution | 600 DPI |
|---|---|
| Form Source (Paper Tab) | By Source |
| Required Data Stream | PCL5 or PCL5e |
| Recommended Paper Size | 8.5" x 11" letter or 8.5" x 14" legal |
| Check Length | 6.00 to 8.75 inches |
| Check Height | 2.75 to 3.66 inches |
Set the Print Resolution under the Graphic Tab to the default value of 600 DPI.
Use standard 8.5" x 11" letter size stock or 8.5" x 14" legal size stock for proper feeding.
The printer requires a PCL5 or PCL5e data stream.
