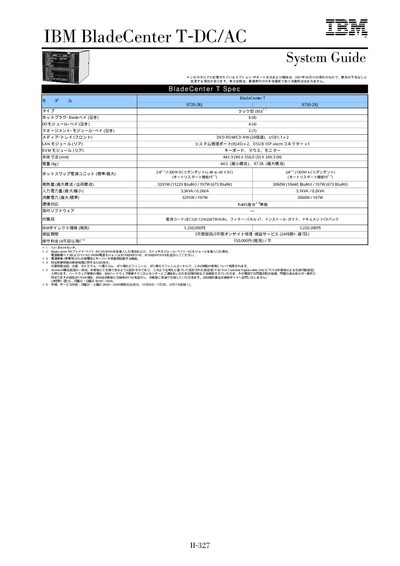

IBM BladeCenter T-DC/AC System Guide, includes product specifications, dimensions, weight, power, heat, warranty, price and other information
This IBM BladeCenter T-DC/AC user manual provides a complete overview of the system, including chassis dimensions, weight, power‑supply options, hot‑plug blade bays and supported modules. It also lists optional accessories such as switches, fiber‑channel cards, UPS units and rack‑mount kits.
The document contains configuration tables, pricing information, service and warranty terms, and contact details for IBM support in Japan. This manual is written in Japanese.
| Dimensions (W × D × H) | 441.9 mm × 556.0 mm × 349.5 mm |
|---|---|
| Weight (minimum / maximum) | 44.5 kg / 87.38 kg |
| Hot‑plug blade bays | 8 |
| Power‑supply (AC redundant) | 1300 W, auto‑restart |
| Maximum power consumption | 3291 W |
| Input power rating | 3.3 kVA / 3.1 kVA |
| Environmental compliance | RoHS compliant |
The chassis measures 441.9 mm wide, 556.0 mm deep and 349.5 mm high.
The system provides eight hot‑plug blade bays.
It includes a three‑year parts warranty and eight‑year onsite repair service.
