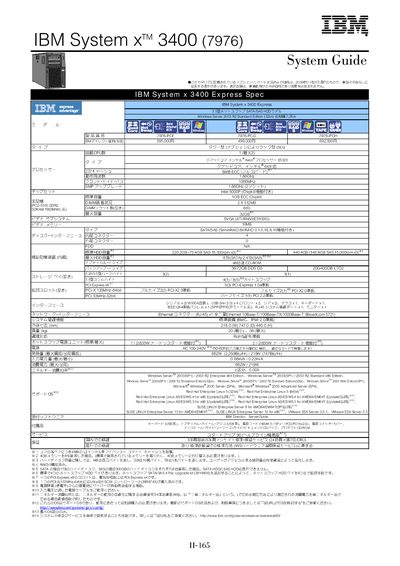

The IBM System xTM 3400 (7976) System Guide is a document that provides information on the configuration, options, performance, and support of the IBM System xTM 3400 (7976) server.
The IBM System x 3400 is a 3.5‑inch tower server (optionally rack‑mountable as a 5U unit) that supports dual‑socket Intel Xeon processors such as the E5320 (1.86 GHz) with up to 32 GB of DDR2 ECC memory. It offers hot‑swap SATA or SAS drive bays (four standard, expandable to eight) and a range of expansion slots including PCI‑Express x8.
The server ships with pre‑installed operating system options (Windows Server 2003 R2, Red Hat Enterprise Linux 5, SUSE Linux Enterprise Server, VMware ESX) and includes management features like BMC with IPMI 2.0. Power supplies provide auto‑restart after power loss, and the system complies with RoHS directives. This manual is written in Japanese.
| Processor | Intel Xeon E5320 1.86 GHz 8 MB L2 cache |
|---|---|
| Memory (standard) | 1 GB ECC DDR2 |
| Maximum memory | 32 GB DDR2 ECC |
| Management controller | BMC with IPMI 2.0 |
The standard configuration includes four hot‑swap SATA HDD bays, which can be expanded to eight using the upgrade kit.
The server can be equipped with up to 32 GB of DDR2 ECC memory.
