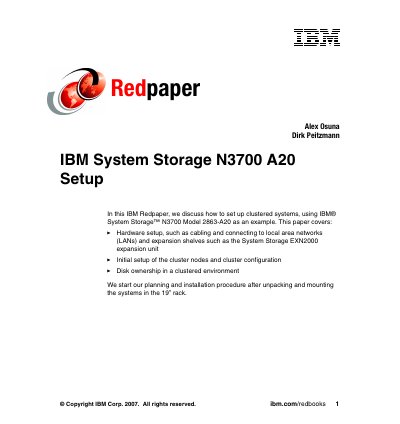

In this IBM Redpaper, we discuss how to set up clustered systems, using IBM® System Storage™ N3700 Model 2863-A20 as an example. This paper covers hardware setup, cluster node and configuration, and disk ownership in a clustered environment.
The guide provides step‑by‑step instructions for planning, installing, and configuring the IBM System Storage N3700 A20 clustered storage appliance. It covers hardware setup, cable connections, shelf ID configuration, and the initial cluster configuration wizard.
Key topics include hardware components, required tools, disk ownership rules, and detailed procedures for connecting Ethernet, console, and Fibre Channel ports, as well as attaching optional EXN2000 expansion shelves.
| CPU modules | 2 |
|---|---|
| Power supplies | 2 (PSU1 and PSU2) |
| Ethernet ports | Two (green) |
| Fibre channel ports | Two (optical orange and copper blue) |
| Console cables supplied | Two RJ45‑DB9 cables |
| Rack size | 19" rack |
The N3700 A20 base unit is equipped with two CPU modules.
Two RJ45‑DB9 console cables are provided for connecting to the serial console.
Each disk has a preferred ownership that stays on the owner node until a takeover occurs.
Set the 1Gb/2Gb switch to the 1Gb position.
