IBM System xTM 3755 System Guide is the user guide for the IBM System xTM 3755 server. It introduces the server's configuration, performance, specifications, supported operating systems, etc.

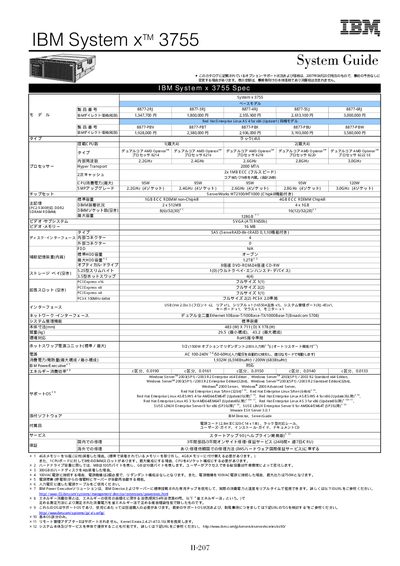

The leaflet details the System x 3755 server specifications, including dual‑core AMD Opteron processors, up to 128 GB of ECC DDR2 memory, hot‑swap storage bays, and a range of expansion slots such as PCI‑Express x16, x8, x4 and PCIX. It also lists power options (1500 W hot‑swap, optional redundant) and physical dimensions (483 mm W × 711 mm D × 178 mm H) with weight ranging from 29.5 kg to 43.2 kg.
Support information covers bundled operating systems (Windows Server 2003, Red Hat Enterprise Linux, SUSE Linux), warranty and service options (CRU and non‑CRU on‑site repair, ServicePac packages), and contact details for IBM sales and technical assistance. This manual is written in Japanese.
| Processor | Dual‑core AMD Opteron |
|---|---|
| Maximum Memory | 128 GB |
| Dimensions (W × D × H) | 483 mm × 711 mm × 178 mm |
| Weight | 29.5 kg (min) – 43.2 kg (max) |
Supported OS include Windows Server 2003 (SP1), Red Hat Enterprise Linux AS 4, and SUSE Linux Enterprise Server.
The server can be configured with up to 128 GB of ECC DDR2 memory.
