The BL30 EB is an extremely compact brushless DC motor with integrated drive electronics. This motor is an outer rotor motor providing a robust bearing system capable of handling high side loads. High quality components ensure an operating life of min. 20000 hours. The output torque of 30 mNm at a constant speed of 3500 RPM makes this motor ideal for small membrane and peristaltic pumps, laser scanners, high-end fan and medical applications.
The BL30 EB series is an extremely compact brushless DC motor with an integrated drive and robust outer‑rotor bearing system. It offers a constant speed of 3500 RPM, IP54 sealing and thermal overload protection, making it suitable for small membrane and peristaltic pumps, laser scanners, high‑end fans and medical equipment.

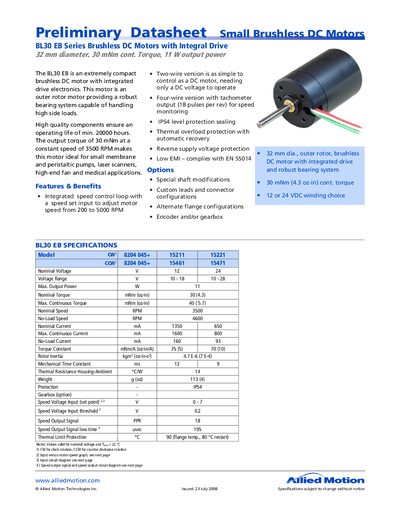

The datasheet provides detailed electrical and mechanical specifications, including nominal voltage options (12 V or 24 V), torque ratings, speed ranges, current consumption and optional features such as custom leads, encoders, gearboxes and shaft modifications.
| Nominal Voltage | 12 V / 24 V |
|---|---|
| Max Output Power | 11 W |
| Nominal Torque | 30 mNm (4.3 oz‑in) |
| Max Continuous Torque | 40 mNm (5.7 oz‑in) |
| Nominal Speed | 3500 RPM |
| No‑Load Speed | 4600 RPM |
| Nominal Current | 1350 mA (12 V) / 650 mA (24 V) |
| Max Continuous Current | 1600 mA (12 V) / 800 mA (24 V) |
| Protection Rating | IP54 |
| Weight | 113 g (4 oz) |
The motor can be supplied with either 12 V or 24 V DC.
The motor has an IP54 level protection sealing.
The maximum continuous torque is 40 mNm (5.7 oz‑in).
The no‑load speed is 4600 RPM.
