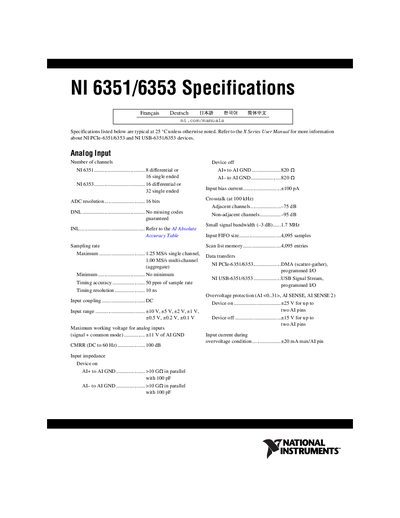

The NI 6351/6353 are NI X Series Analog Input Cards with 16-bit resolution, a maximum sample rate of 1.25 MS/s, and 50 ppm of sample rate accuracy. The cards support multiple input ranges and have a maximum working voltage of ±11 V.
The NI 6351/6353 family provides high‑performance data acquisition for PCIe and USB platforms. Both devices offer flexible analog input configurations, high‑resolution analog output, and extensive digital I/O, making them suitable for a wide range of measurement and control applications.
Key specifications include up to 1.25 MS/s single‑channel sampling, 16‑bit ADC resolution, configurable input ranges from ±0.1 V to ±10 V, and a variety of digital I/O and counter/timer resources. Power requirements, environmental limits, and safety certifications are also detailed for proper system integration.
| Analog input channels (NI 6351) | 8 differential or 16 single‑ended |
|---|---|
| ADC resolution | 16 bits |
| Maximum sampling rate (single channel) | 1.25 MS/s |
| Input range (selectable) | ±10 V, ±5 V, ±2 V, ±1 V, ±0.5 V, ±0.2 V, ±0.1 V |
| Input impedance (device on) | >10 GΩ in parallel with 100 pF |
| Power consumption (PCIe‑6351 without disk drive connector) | 4.6 W (+3.3 V) / 5.4 W (+12 V) |
| Operating temperature (PCIe‑6351/6353) | 0 °C to 50 °C |
The maximum sampling rate is 1.25 MS/s per channel.
They require 11 V to 30 V DC, up to 30 W, with a 2‑position 3.5 mm pitch pluggable screw terminal.
When the device is on, the input impedance is greater than 10 GΩ in parallel with 100 pF.
