This document is about APEX gear motor torque recommendation table, which lists the torque values for different types of screws, for reference.

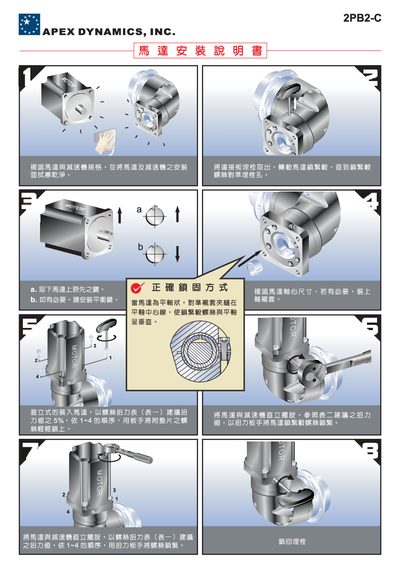

This manual provides step‑by‑step instructions for installing and securing the 2PB2‑C motor. It covers removal of the original motor, proper alignment of the motor shaft, and recommended tightening procedures.
The document includes detailed torque tables for the various fasteners used in the motor and gearbox assembly, specifying the required tightening torque for each screw size to ensure reliable operation. This manual is written in Chinese.
| M3 x 0.5P tightening torque | 2.5 Nm |
|---|---|
| M4 x 0.7P tightening torque | 3 Nm |
| M6 x 1P tightening torque | 5 Nm |
The recommended tightening torque for an M4 x 0.7P screw is 3 Nm.
An M6 x 1P fastener should be tightened to 5 Nm.
They provide the recommended tightening torque values for each screw size to ensure proper motor and gearbox assembly.
