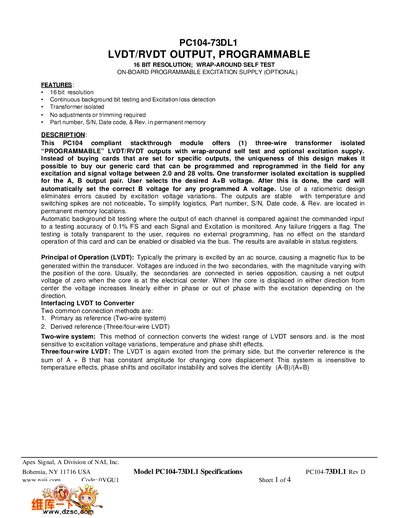

This document is the specification sheet for the PC104-73DL1 product produced by Apex Signal, A Division of NAI, Inc. PC104-73DL1 is a programmable 16-bit resolution LVDT/RVDT output product with envelope self-test and optional programmable excitation supply.
The Apex Signal PC104-73DL1 is a PC104 compliant stackthrough module designed for LVDT and RVDT applications. It features programmable outputs with 16-bit resolution, wrap-around self-test capabilities, and an optional on-board excitation supply. The module allows users to program excitation and signal voltages between 2.0 and 28 volts in the field, eliminating the need for specific pre-set cards.
| Resolution | 16 bits (.001526% FS) |
|---|---|
| Linearity | 1 mV + .05% reading |
| Output Voltage Range | 2.0 to 28 Vrms |
| Excitation Frequency | 360 Hz to 10 KHz |
| Operating Temperature | -40°C to +80°C |
| Size | 3.6 x 3.8 x 0.6 inches |
The module provides 16-bit resolution.
Yes, the excitation voltage is programmable between 2.0 and 28 Vrms.
Yes, it features continuous background bit testing and excitation loss detection.
