ZigBee1081 is a wireless data acquisition card based on ZigBee technology. It has the advantages of low power consumption, reliability, low cost, large capacity and security.
The ZigBee1081 is a wireless data acquisition card that integrates a ZigBee communication module with analog and digital I/O. It features a 66 MHz 32‑bit RISC processor, 2 MB NorFlash, and optional CF‑card storage.

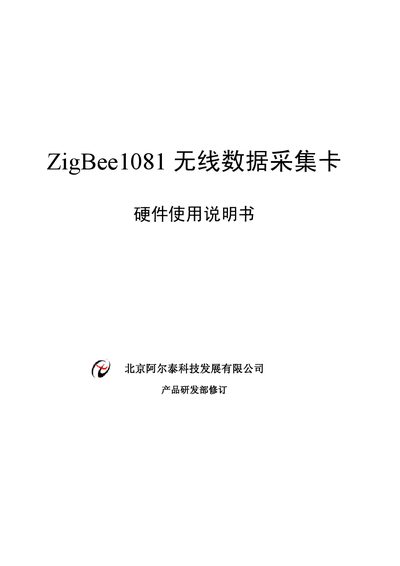

The manual provides a product overview, detailed connector definitions, signal wiring methods, installation guidance, and warranty information, helping users set up and operate the card in laboratory or industrial monitoring applications. This manual is written in Chinese.
| AD input voltage range | ±10 V, ±5 V, ±2.5 V, 0‑10 V, 0‑5 V |
|---|---|
| AD resolution | 16 bit |
| AD channels | 16 single‑ended channels |
| DA output voltage range | 0‑5 V, 0‑10 V, ±5 V, ±10 V |
| DA resolution | 12 bit |
| Digital input channels | 16 isolated DI inputs (dry or wet) |
| Dimensions | 226 mm × 140 mm × 37 mm |
| Power supply | +9 V ~ +30 V |
| Operating temperature | -40 °C ~ +80 °C (no LCD) / 0 °C ~ +70 °C (with LCD) |
The AD inputs accept ±10 V, ±5 V, ±2.5 V, 0‑10 V, and 0‑5 V signals.
Run the provided Setup.exe from the installation CD and follow the on‑screen prompts.
