The PCI1010 motion control card is a hardware device provided by Beijing Alta Technology Development Co., Ltd. The control card features a 32-bit PCI bus interface and can be used for 2-axis servo/stepper motor control. It supports pulse output with a frequency error less than 0.1% and a maximum speed of 4 MHz. Additionally, it offers various pulse output modes, asymmetric linear acceleration/deceleration drive, and various interpolation functions. The control card also supports fixed linear speed control, multi-axis synchronous start/stop, and more.
The PCI1010 is a 32‑bit PCI motion‑control card that can independently control two axes of servo or stepper motors. It provides high‑resolution position feedback, configurable speed, acceleration and deceleration profiles, and supports a variety of external signals such as limit, alarm and stop.

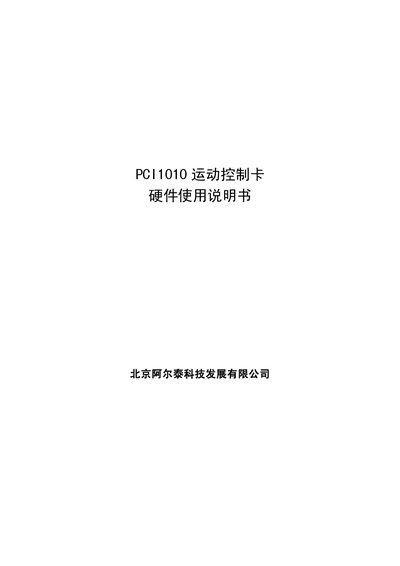

The manual describes hardware installation, power and LED indicators, signal pin assignments, configuration registers, and software interfaces for Windows environments. It also lists detailed electrical and performance specifications. This manual is written in Chinese.
| PCI bus interface | 32‑bit |
|---|---|
| Number of axes | 2 independent axes |
| Maximum pulse frequency | 4 MHz |
| Operating temperature | 0 °C to +50 °C |
| Supply voltage | 24 V DC |
| Position resolution | ≤0.5 LSB |
| Pulse rate range | 1‑4 MPPS |
The PCI1010 can control two independent axes of servo or stepper motors.
It operates from 0 °C up to +50 °C.
The card requires a 24 V DC external power supply.
The maximum pulse frequency is 4 MHz.
