The ARM8006 is an industrial‑grade PC/104 board designed by Beijing Art‑Control Technology. It integrates Ethernet, UART, CAN, CF‑card, LCD and a full set of PC/104 connectors, and operates reliably from –40 °C to +80 °C.

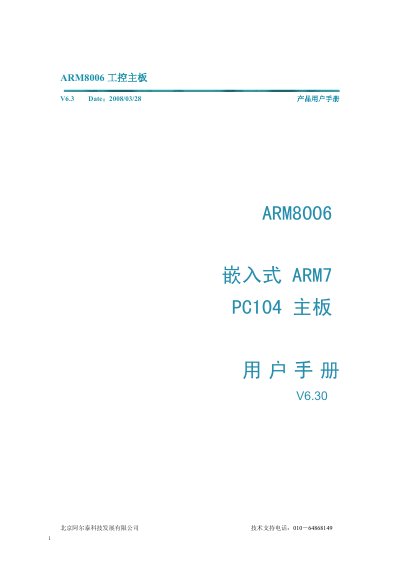

The manual provides a functional overview, detailed hardware structure, electrical parameters, interface descriptions, resource mapping and development environment recommendations, helping users install, configure and program the board. This manual is written in Chinese.
| Operating Voltage (Vpower) | 4.75 V – 5.25 V |
|---|---|
| Operating Current (Ipower) | 175 mA – 225 mA |
| UART Baud Rate | 300 bps – 115200 bps |
| CAN Nodes Supported | Up to 110 nodes |
| Ethernet Speed | 10/100 Mbps (auto‑negotiation) |
| Power Supply Requirement | 5 V DC, max 1 A, ±5 % tolerance |
| Operating Temperature Range | -40 °C to +80 °C |
| On‑board Flash | 64 MB NAND Flash |
| SRAM | 512 KB SRAM |
The board can work reliably from –40 °C up to +80 °C.
It requires a 5 V DC supply with a maximum input current of 1 A and voltage tolerance of ±5 %.
The CAN interface supports up to 110 nodes.
