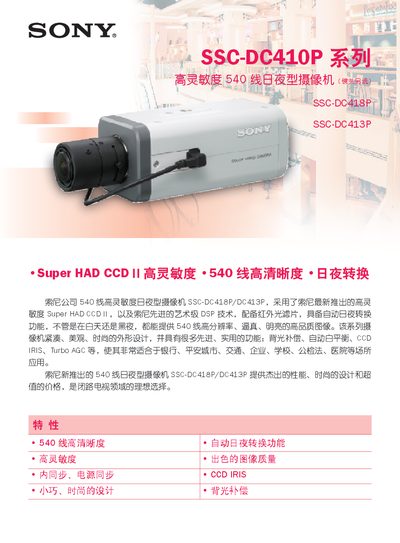

The SSC-DC418P/DC413P is a high-sensitivity 540-line day/night camera from Sony that uses Sony's latest high-sensitivity Super HAD CCDⅡ and Sony's advanced art-level DSP technology. Equipped with an infrared light filter, it has an automatic day/night switching function that provides 540-line high resolution, realistic, bright, high-quality images, whether in the daytime or at night. The series camera has a compact, beautiful, and stylish appearance design, and has many advanced and practical functions: backlight compensation, automatic white balance, CCD IRIS, Turbo AGC, etc., making it very suitable for banks, safe cities, transportation, enterprises, schools, public security and law enforcement, hospitals and other places.
The SSC‑DC410P series camcorders from Sony feature a Super HAD CCD sensor with 540‑line high‑definition imaging and automatic day‑and‑night switching, making them suitable for security, traffic, corporate, school, and medical applications. Key functions include auto iris, turbo AGC, white balance, and CCD IRIS control.
Technical specifications cover sensor size, resolution, signal format, illumination requirements, power consumption, dimensions, weight, and available accessories. The document also lists video output options and environmental operating limits. This manual is written in Chinese.
| Image sensor | 1/3 inch Super HAD CCD |
|---|---|
| Resolution | 752 x 582 |
| Sensor size | 48 x 3.6 mm |
| Signal format | PAL |
| Horizontal resolution | 540 lines |
| Minimum illumination (color) | 0.4 lx |
| Minimum illumination (black & white) | 0.2 lx |
| Shutter speed | 1/50 – 1/1000 sec |
| Signal‑to‑noise ratio | 50 dB |
| Video output | BNC, 10 Vpp, 75 Ω |
| Operating temperature | -10 °C to 50 °C |
| Storage temperature | -40 °C to -60 °C |
| Power consumption | 40 W |
| Weight | 410 g / 390 g |
| Dimensions | 60 x 53 x 126.5 mm |
The camcorder needs at least 0.4 lx of illumination for color recording.
It can operate from –10 °C up to 50 °C.
The video output is provided via a BNC connector with 10 Vpp and 75 Ω termination.
