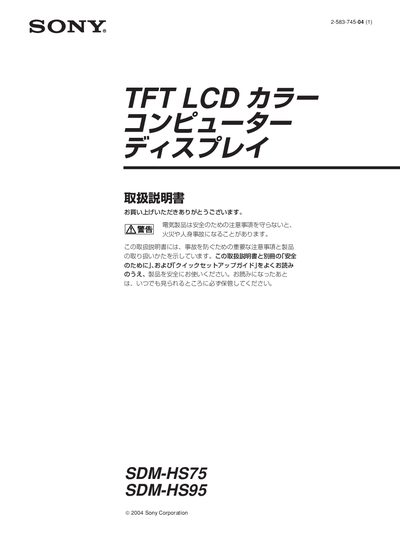

This document is an instruction manual from Sony Corporation, which mainly introduces the precautions and product features of SDM-HS75 and SDM-HS95 TFT LCD color computer displays.
This manual covers safety precautions, proper power handling, and recommended placement for the Sony SDM-HS75 and SDM-HS95 LCD monitors. It explains how to connect the monitor to a computer using the HD15 (analog RGB) video cable, how to attach the power cord, and how to secure the unit on a stand or wall mount.
The guide also describes menu navigation, brightness, contrast, color temperature adjustments, power‑saving (R‑mode) features, and common troubleshooting steps such as dealing with dark screens or image distortion. Warranty information and service contacts are provided at the end, along with a summary of the main technical specifications. This manual is written in Japanese.
| Screen size (SDM-HS75) | 17.0 inches (43 cm) |
|---|---|
| Screen size (SDM-HS95) | 19.0 inches (48 cm) |
| Maximum resolution | 1280 × 1024 pixels |
| Dimensions (SDM-HS75) | 388 × 382.5 × 139.2 mm |
| Dimensions (SDM-HS95) | 485 × 418 × 146 mm |
Connect the computer’s HD15 (analog RGB) video output to the monitor’s HD15 input using the supplied HD15‑HD15 video cable, then power the monitor after the computer is turned off.
Use the menu to adjust the brightness (バックライト輝度) as described on page 12 of the manual.
Activate the R‑mode (省電力機能) from the menu to reduce power consumption while the monitor is idle.
