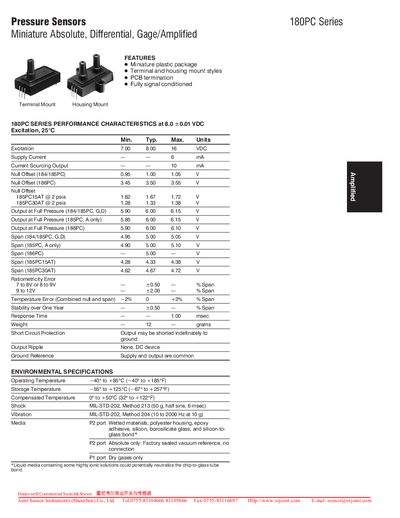

This document describes the features and performance characteristics of the Pressure Sensors 180PC series, including miniature plastic package, terminal and housing mount styles, PCB termination, etc. Performance characteristics include excitation voltage, supply current, output current, null offset, output voltage range, span, temperature error, etc.
The 180PC series from Honeywell includes miniature absolute, differential, and gage/amplified pressure sensors. The document provides key performance data such as excitation voltage, supply current, output range, and null offset for each sensor type.
Additional information covers environmental specifications, ordering options, electrical connection diagrams, and detailed mounting dimensions for both terminal‑mount and housing‑mount configurations.
| Excitation Voltage | 8.00 VDC |
|---|---|
| Supply Current | 6 mA |
| Current Sourcing Output | 10 mA |
| Null Offset (184/185PC) | 1.00 V |
| Full‑Scale Output (184/185PC, G/D) | 6.00 V |
| Span (184/185PC, G/D) | 5.00 V |
| Temperature Error (Combined Null & Span) | -2% to +2% Span |
| Operating Temperature | -40°C to +85°C |
| Shock Rating | MIL‑STD‑202 Method 213 (50 g, half sine, 6 ms) |
| Weight | 12 g |
The sensors operate from –40 °C to +85 °C.
The supply current is 6 mA.
Both terminal‑mount and housing‑mount styles are offered.
Full‑scale output is approximately 6.00 V.
