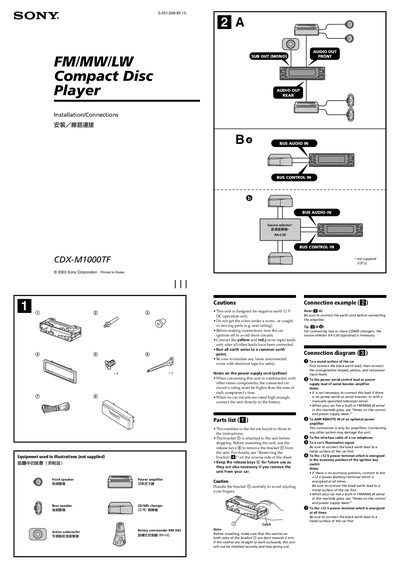

Sony CDX-M1000TF Installation Manual

About this manual

This manual provides step‑by‑step instructions for installing the Sony CDX-M1000TF car CD/MD player. It includes wiring diagrams, parts lists, and detailed safety cautions for a reliable installation.

Key sections cover power‑supply connections, speaker wiring, bracket removal, mounting angle adjustment, and special notes for vehicles without an accessory ignition position. Follow the recommended procedures to ensure proper operation and avoid battery drain.

What's inside

• Installation/Connections
• Parts list
• Connection example
• Speaker connection
• Mounting example
• Removing the bracket
• Mounting angle adjustment
• Installation in the dashboard
• Warning when installing in a car without ACC position

Specifications

Frequently asked questions

What type of power supply does the CDX-M1000TF require?

It requires a negative earth 12 V DC power supply.

What fuse should be used with the unit?

A 10 A fuse is recommended.

How should the earth lead be connected?

Connect the black earth lead to a metal surface of the car first.

Can the unit be installed in a car without an accessory ignition position?

Yes, connect to the +12 V battery terminal that is energized at all times.
