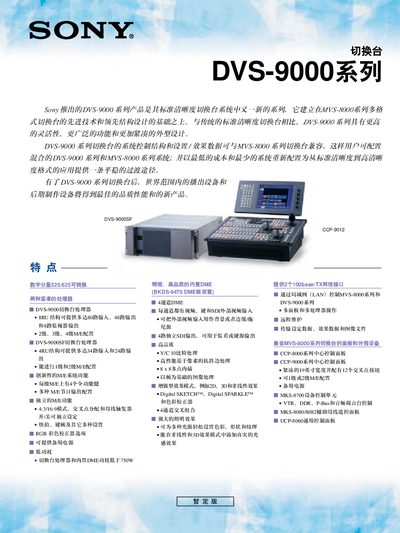

This document describes the features and characteristics of the DVS-9000 and DVS-9000SF products, including their dimensions and power requirements.
The Sony DVS-9000 series is a professional video switcher offering up to 80 input channels and 48 output channels. This manual provides detailed information on power requirements, dimensions, network interfaces, and wiring configurations for both the DVS-9000 and the DVS-9000SF models.
Key sections include an overview of the system, technical specifications, input/output connections, power and environmental limits, and model‑specific features such as LAN ports and DME modules. The document also lists part numbers and contact information for Sony support in Hong Kong, China, and Japan. This manual is written in Chinese.
| Input voltage | 100V to 240V AC, 50/60 Hz |
|---|---|
| Current (DVS-9000) | 8.6 A to 42 A |
| Current (DVS-9000SF) | 5.5 A to 2.5 A |
| Operating temperature (storage) | -20 °C to 0 °C |
| Dimensions (DVS-9000) | 482 mm × 354 mm × 520 mm |
| Dimensions (DVS-9000SF) | 482 mm × 177 mm × 520 mm |
| Maximum input channels | 80 |
| Maximum input channels (SF) | 34 |
| LAN ports | 2 × 100Base‑TX |
| SRU channel capacity | up to 80 inputs, 48 outputs |
The DVS-9000 operates from 100 V to 240 V AC at 50/60 Hz.
The SRU can provide up to 80 input channels and 48 output channels.
The DVS-9000 measures 482 mm × 354 mm × 520 mm.
It includes two 100Base‑TX Ethernet ports.
