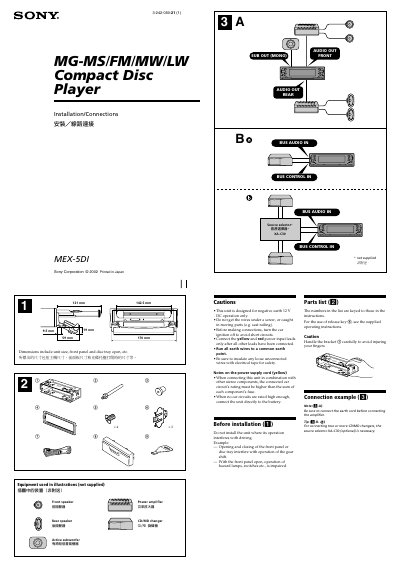

This guide provides step‑by‑step instructions for installing the Sony MEX‑5DI compact disc player in a vehicle. It includes safety warnings, recommended mounting locations, and hardware needed for a secure fit.\n\nThe manual details the wiring connections for power, earth, audio inputs and outputs, as well as optional accessories such as a source selector and external amplifiers. It also explains how to set the mounting angle, reset the unit, and handle the memory‑hold circuit.
| Operating voltage | 12 V DC (negative earth) |
|---|---|
| Maximum supply current (audio output) | 0.1 A |
| Maximum supply current (auxiliary) | 0.3 A |
| Fuse rating | 10 A |
| Maximum mounting angle | < 30° |
It is designed for negative earth 12 V DC operation only.
Connect the black earth lead first before any other leads.
The mounting angle should be set to less than 30 degrees.
