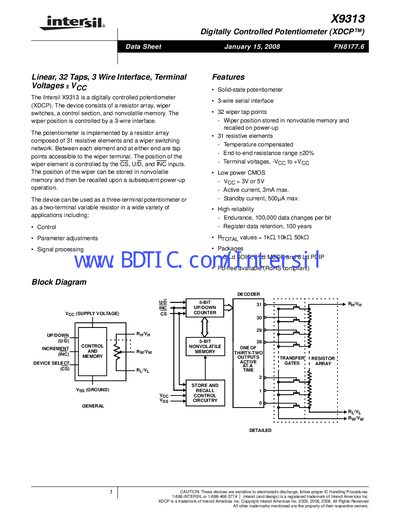

This document is the user manual of x9313, which introduces the basic characteristics and usage methods of the product.
The X9313 is a digitally controlled potentiometer (XDCP) that integrates a 31‑element resistor array, wiper switches, a control section, and non‑volatile memory. It offers 32 selectable tap positions via a 3‑wire serial interface and can store the wiper position in non‑volatile memory for recall on power‑up.
Key features include a supply voltage range of 3 V to 5 V, active current up to 3 mA, standby current as low as 500 µA, temperature‑compensated operation from –40 °C to +85 °C, and data retention of 100 years. The device is offered in multiple plastic packages (SO, MSOP, PDIP) with both leaded and Pb‑free options.
| Resistive elements | 31 |
|---|---|
| End‑to‑end resistance tolerance | +20 % |
| Active current (max) | 3 mA |
| Supply voltage range | 3 V to 5 V |
| Number of wiper positions | 32 |
| Data endurance | 100 000 changes per bit |
| Data retention | 100 years |
The X9313 operates from 3 V to 5 V.
The device provides 32 selectable tap positions.
The active current is limited to 3 mA.
The non‑volatile memory retains the wiper position for up to 100 years.
