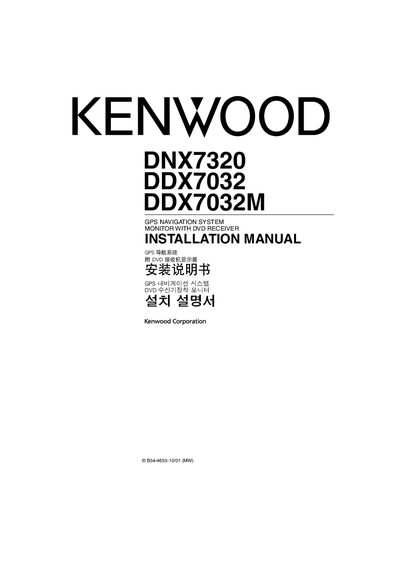

This installation guide provides step‑by‑step instructions for mounting the Kenwood DNX7320, DDX7032, and DDX7032M GPS navigation system with DVD receiver. It includes safety warnings, wiring diagrams, and procedures for connecting speaker wires, power, ignition, and optional accessories.
The manual also details GPS antenna installation, recommended mounting angles, fuse specifications, and how to connect optional accessories such as rear‑view cameras, iPod adapters, and Bluetooth modules. Proper grounding and avoiding short circuits are emphasized throughout.
| Mounting angle | 30° or less |
|---|---|
| Fuse rating | 154 |
| Cooling fan | Provides internal temperature reduction |
| GPS antenna spacing | At least 12 inch (30 cm) from cellular phone |
Remove the ignition key and disconnect the battery before making any connections, and always connect the ignition and battery wires to the fuse box rather than the chassis.
Turn off the vehicle, remove the ignition key, and disconnect the battery to avoid accidental short circuits.
