Kenwood KDC-Z838 / KDC-Z737 Car Audio User Manual

Q: How do I reset the unit if it malfunctions?

Press the reset button; the unit will return to its initial state.

Q: What laser safety class does the device have?

The device uses a Class 1 laser, which is the lowest risk class.

Q: What wire gauge should be used for the power supply?

Use a wire of 0.75 mm² (AWG 18) or larger for the power connection.

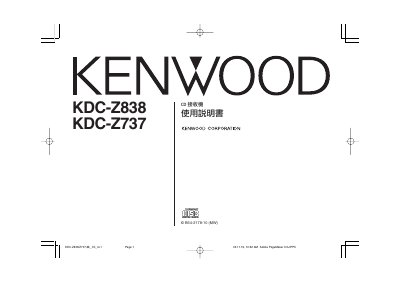

Kenwood KDC-Z838 / KDC-Z737 Car Audio User Manual - cover page

Brand: Kenwood
Category: Car Accessories
Document type: User Manual
Language: Chinese
Pages: 40
File format: PDF
File size: 1.1 MB
Published: 30 September, 2011
Updated: 29 September, 2023
MD5 checksum: 180BF38D8BF5A845F22F84E139818373
PDF: Kenwood KDC-Z838 / KDC-Z737 Car Audio User Manual PDF

About this manual

This manual provides safety precautions, installation steps, and basic operation guidelines for the Kenwood KDC‑Z838 and KDC‑Z737 car CD/MP3 players. It includes detailed instructions for CD and MP3 playback, laser safety information, and recommended wiring practices.

Troubleshooting procedures, reset instructions, and technical specifications such as power requirements, RPM ranges, and audio performance are also covered to help users maintain optimal operation. This manual is written in Chinese.

What's inside

Safety Precautions
Installation
Basic Operation
CD Playback
MP3 Playback
Reset Procedure
Laser Safety
Troubleshooting
Technical Specifications

Specifications

Operating voltage	11~16 V
KDC‑Z838 speed range	1000‑400 rpm
KDC‑Z737 speed range	500‑200 rpm
Full‑bandwidth power (THD)	THD < 10 %

Frequently asked questions

How do I reset the unit if it malfunctions?

Press the reset button; the unit will return to its initial state.

What laser safety class does the device have?

The device uses a Class 1 laser, which is the lowest risk class.

What wire gauge should be used for the power supply?

Use a wire of 0.75 mm² (AWG 18) or larger for the power connection.

Download PDF (1.1 MB)
