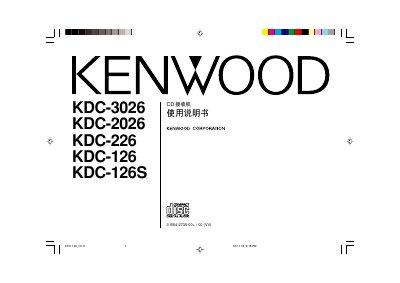

This manual provides safety precautions, installation guidelines, and operating instructions for Kenwood CD receiver models KDC-3026, KDC-2026, KDC-226, KDC-126 and KDC-126S. It explains how to connect compatible CD changers, use audio controls, select speaker presets, and adjust the clock.
Additional sections cover panel removal and locking, cleaning and maintenance tips, troubleshooting error codes, and detailed technical specifications such as frequency range, sensitivity, dimensions and weight. This manual is written in Chinese.
| Frequency range | 87.9 MHz – 107.9 MHz |
|---|---|
| Sensitivity (KDC-3026/2026) | SN = 30 dB, 9.3 dBf (0.8 V/75 Ω) |
| Sensitivity (KDC-226/126/126S) | SN = 20 dB, 28 dBf |
| Noise reduction sensitivity | SA/N = 50 dB, 15.2 dBfT (1.6 V/75 Ω) |
| Dimensions | 182 mm × 53 mm × 155 mm |
| Weight | 3.1 lb (1.4 kg) |
| Output impedance | < 600 Ω |
Press the reset button on the unit; if the problem persists, contact a Kenwood dealer.
No, 8 cm (3‑inch) CDs are not supported and should not be used.
Wipe the panel with a soft, dry cloth; avoid solvents, alcohol, or abrasive cleaners.
