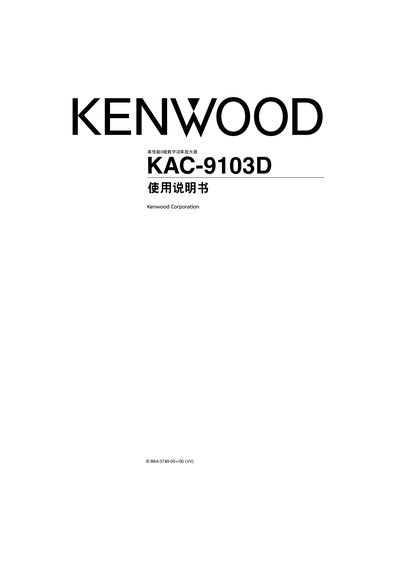

The Kenwood KAC-9103D digital power amplifier user manual provides safety warnings, installation steps, wiring diagrams, controls, and troubleshooting guidance.
This manual covers important safety precautions for installing and operating the KAC-9103D digital power amplifier, including warnings about fire, shock, and proper handling of wiring. It advises that installation and wiring should be performed by qualified personnel and outlines suitable mounting locations away from direct sunlight, high heat, moisture, and dust.
The document details the wiring connections, control functions, and adjustment procedures for the amplifier, such as power supply connection, fuse selection, speaker impedance requirements, and various control knobs (low‑pass filter, phase, bass boost). It also includes a troubleshooting section that helps diagnose common issues like no sound, protection activation, and speaker short circuits.
| Speaker impedance | ≥ 1 Ω |
|---|---|
| Maximum output power | ≤ 40 W |
| Power supply voltage | 12 V DC (negative ground) |
| Fuse rating | 30 A |
