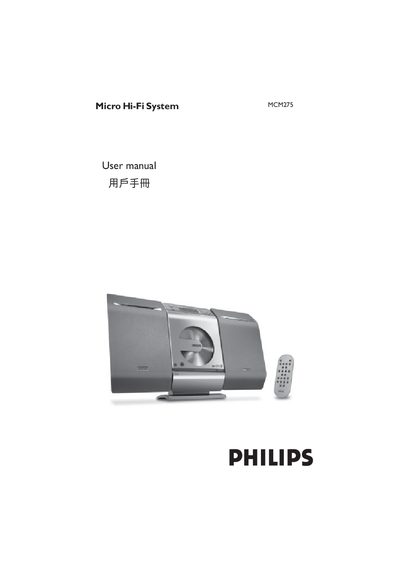

This manual introduces the basic operations of MCM275 Micro Hi-Fi System.
This manual covers safety precautions, installation options (desktop or wall‑mount), connection of speakers, antennas, USB and AUX devices, and detailed operation of the CD, radio, and USB playback functions. It also explains timer and clock settings, audio effects, and remote‑control usage.
Technical specifications, maintenance guidelines, and a troubleshooting guide are included, along with an appendix for wall‑mount installation with diagrams and required tools.
| Output Power | 2 x 5 W RMS (10 W + 10 W PMPO) |
|---|---|
| Signal‑to‑Noise Ratio | ≥ 75 dBA |
| Frequency Response | 50 – 20 000 Hz, ± 3 dB |
| Speaker Impedance | ≥ 4 Ω |
| Headphone Impedance | 32 Ω – 1000 Ω |
| CD Player Frequency Range | 30 – 16 000 Hz |
| FM Radio Frequency Range | 87.5 – 108 MHz |
| Standby Power Consumption | < 5 W |
| Dimensions (W × H × D) | 160 × 269 × 90 mm |
| Weight (with speakers) | 3.8 kg |
Apply Philips CD laser‑head cleaning fluid or a compatible cleaner according to the product instructions, then gently wipe the head.
The unit consumes less than 5 W in standby mode.
