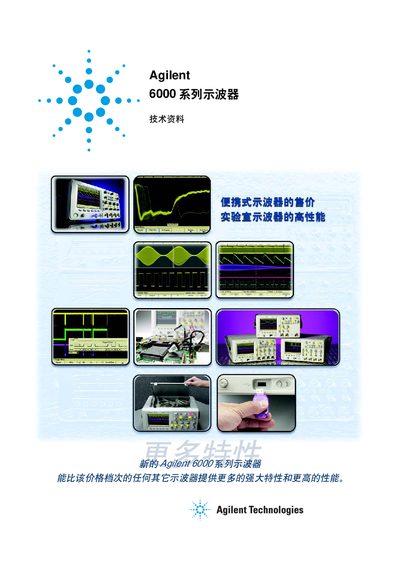

The Agilent 6000 series oscilloscopes provide high‑performance mixed‑signal measurement with bandwidths of 300 MHz, 500 MHz, and 1 GHz, and sample rates up to 2 GS/s. Models are offered in DSO (digital storage) and MSO (mixed‑signal) configurations with 2 + 16 or 4 + 16 channels and deep storage (1 Mpts MegaZoom II, up to 8 Mpts). The instruments feature a 1024 × 768 XGA color display and a waveform update rate of up to 100 000 waveforms / s.
Connectivity includes USB 2.0, Ethernet LAN, GPIB, and video output, plus an AutoProbe interface for active probes. The manual explains setup, operation, trigger functions, and accessory options such as HDTV/EDTV inputs and a variety of probe kits. This manual is written in Chinese.
| Bandwidth | 300 MHz, 500 MHz, 1 GHz |
|---|---|
| Channel Configuration | 2 + 16 or 4 + 16 mixed‑signal channels |
| Storage Depth | 1 Mpts (MegaZoom II) up to 8 Mpts |
| Display Resolution | 1024 × 768 XGA color |
| Waveform Update Rate | 100 000 waveforms / s |
| AutoProbe Interface | Supported |
The series offers models with 300 MHz, 500 MHz, and 1 GHz bandwidths.
MSO models provide mixed‑signal configurations of either 2 + 16 or 4 + 16 channels.
The oscilloscope can update up to 100 000 waveforms per second.
