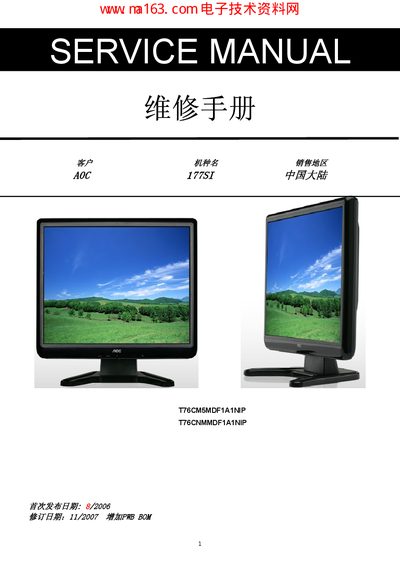

This is a maintenance manual that introduces the safety and precautions, technical specifications, operating instructions and factory mode adjustment, ISP upgrade process, fault handling process, electrical box diagram, PCB distribution diagram, wiring diagram, explosion diagram, BOM and other contents of AOC 177SI.
This service manual provides safety warnings, regulatory notices, and handling instructions for the AOC 177Si LCD monitor. It includes detailed specifications, input connectors, power requirements, and environmental limits.
The document also describes OSD configuration, operation procedures, and service troubleshooting steps, along with FCC and WEEE compliance information. This manual is written in Chinese.
| Screen size | 43.2 cm (17.0") |
|---|---|
| Resolution | 1280 x 1024 (60 Hz) |
| Pixel pitch | 0.264 mm (H) x 0.264 mm (V) |
| Color depth | 16.2 M colors |
| Horizontal frequency | 30 kHz – 83 kHz |
| Vertical frequency | 55 Hz – 75 Hz |
| Power supply | 100‑240 V AC, 47‑63 Hz |
| Dimensions (H × W × D) | 883.45 mm × 875.45 mm × 209.60 mm |
| Weight (without packaging) | 7.7 kg |
| Operating temperature | 0 °C – +50 °C |
| Storage temperature | -20 °C – +60 °C |
The monitor requires a 100‑240 V AC power source at 47‑63 Hz.
