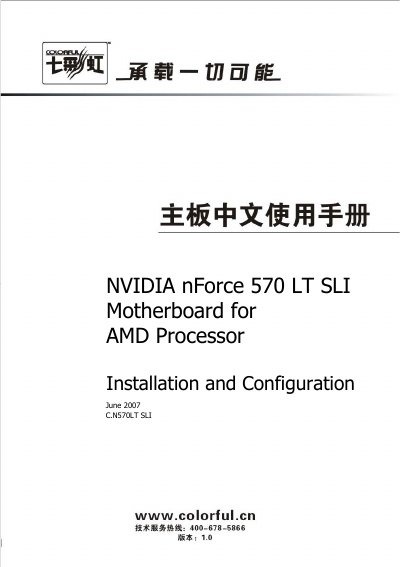

This document provides installation and configuration instructions for the C.N570LT SLI NVIDIA nForce 570 LT SLI motherboard, released in June 2007. It also highlights the features and specifications of the motherboard.
This guide provides step‑by‑step instructions for installing the Colorful C.N570LT SLI motherboard, configuring hardware components, and setting up BIOS options. It covers mechanical installation, connector wiring, and driver installation for Windows operating systems.
The document also details advanced BIOS features such as power‑on alarm, ACPI settings, and onboard device configuration, helping users fine‑tune performance and troubleshoot common issues. This manual is written in Chinese.
| PCI Express x16 slot | present |
|---|---|
| PCI Express x1 slot | present |
| ATX 12V power connector | present |
| Onboard audio | present |
Set the BIOS Write Protect jumper to Disabled in the BIOS setup before flashing the BIOS.
