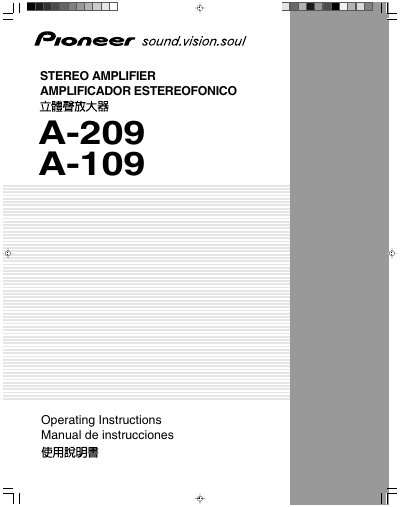

This manual explains how to install, connect, and operate the Pioneer A-209 and A-109 stereo amplifiers. It includes safety warnings, voltage selector settings, recommended ventilation clearances, and detailed panel descriptions.
Key sections cover installation location, wiring diagrams for speakers and source components, operation of controls such as volume, balance, bass/treble, and the TAPE 2 MONITOR function, as well as troubleshooting tips and a full specification table. This manual is written in Spanish.
| Power consumption (A-209) | 130 W |
|---|---|
| Continuous power output 4 Ω (A-209) | 45 W + 45 W |
| Continuous power output 8 Ω (A-109) | 40 W + 40 W |
| Weight (A-209) | 4.7 kg |
