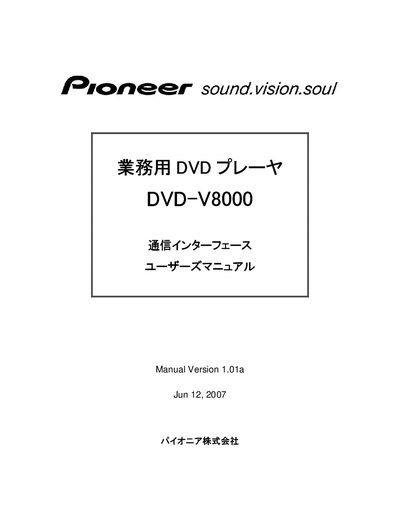

This manual describes the communication interface functions of the DVD-V8000 player.
The DVD-V8000 is an industrial DVD player capable of playing DVD, CD, and Video CD media. It supports both serial (RS‑232) and parallel control interfaces, allowing computer‑based operation and integration into larger systems. This manual explains how to connect, configure, and control the player via these interfaces.
The document details the pin assignments for the 9‑pin and 15‑pin D‑Sub connectors, RS‑232 voltage levels, command sets for playback control, and internal register functions. It also covers external switch functions, power control, and provides reference data for developers implementing custom control software. This manual is written in Japanese.
| Interface connectors | 9‑pin D‑Sub and 15‑pin D‑Sub |
|---|---|
| Default connector setting | 15‑pin connector |
| RS‑232 output voltage swing | -5 to -9 V |
| RS‑232 input voltage range | -15 to +15 V |
| Power control pin | Pin 5 (POWER) Input |
The player is equipped with both a 9‑pin D‑Sub and a 15‑pin D‑Sub connector.
No, only one can be used at a time; the default at shipment is the 15‑pin connector.
Pin 5, labeled POWER, is the input for external power control.
