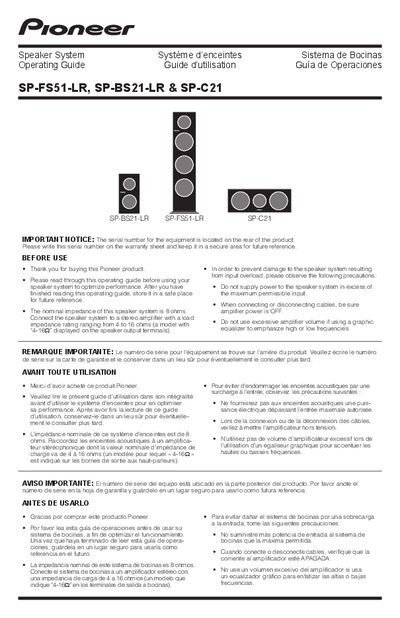

Pioneer SP-FS51-LR/SP-BS21-LR/SP-C21 Speaker System Operating Guide

This document is the operating guide for Pioneer SP-FS51-LR, SP-BS21-LR & SP-C21 speakers.

Brand: Pioneer
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 16
File format: PDF
File size: 2 MB
Published: 09 July, 2012
Updated: 30 September, 2023
MD5 checksum: 9357C8F33447C8CD046B9CF63BFB52B3
PDF: Pioneer SP-FS51-LR/SP-BS21-LR/SP-C21 Speaker System Operating Guide PDF

About this manual

This document is an operating guide for the Pioneer SP-FS51-LR floorstanding speakers, SP-BS21-LR bookshelf speakers, and SP-C21 center channel speaker. It provides instructions on connecting the system to a stereo amplifier with 4-16 ohm impedance ratings and details proper wiring polarity using red and black terminals.

What's inside

Connecting Your System
Installing the Base
Placement and Fine Tuning
Installation Precautions
Cabinet Maintenance

Specifications

Frequency Range (Floorstanding)	45 Hz-20 kHz
Nominal Impedance	8 ohms (System)
Maximum Input Power (Floorstanding)	130 W
Configuration (Center Channel)	2-way

Frequently asked questions

What amplifier impedance rating is required?

Connect the speaker system to a stereo amplifier with a load impedance rating ranging from 4 to 16 ohms.

How should the center channel be set in Dolby mode?

Set the center channel to SMALL in Dolby and BTS modes.
