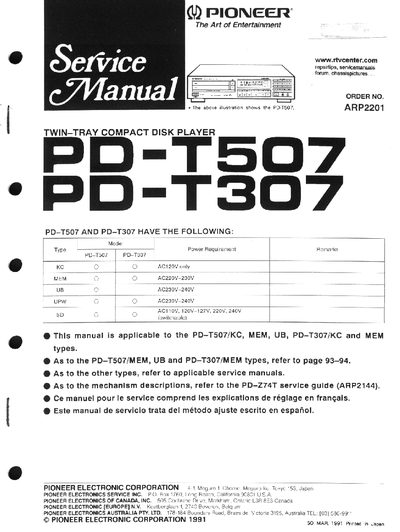

This service manual provides detailed instructions for servicing the Pioneer PD‑T507 and PD‑T307 twin‑tray compact disk players. It includes procedures for removing and mounting trays, the bonnet, and internal mechanisms, as well as exploded diagrams and part numbers.
Key sections cover power‑requirement specifications, step‑by‑step removal of trays and the bonnet, mounting of gears and cam assemblies, and comprehensive parts lists for both models. The manual also references related service guides for additional mechanisms.
| Power Requirement (KC) | AC120V only |
|---|---|
| Power Requirement (MEM) | AC220V‑230V |
| Power Requirement (UB) | AC230V‑240V |
| Power Requirement (UPW) | AC230V‑240V |
| General Power Options | AC110V, 120V‑127V, 220V, 240V |
Open Tray I, insert a flat‑blade screwdriver into the left slit, and pull the tray out by pushing the screwdriver.
Remove the six screws, then pull the bonnet upward; pull outward on both sides before pulling diagonally toward the rear to avoid catching the hooks.
