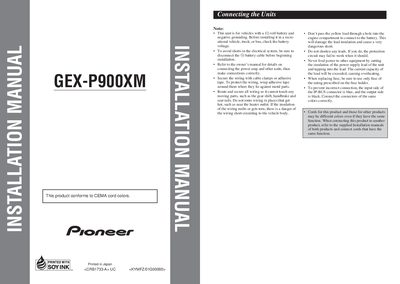

Pioneer GEX-P900XM Installation Guide

This manual describes how to connect the GEX-P900XM

Brand: Pioneer
Category: Car Accessories
Document type: Installation Guide
Language: English
Pages: 4
File format: PDF
File size: 59 KB
Published: 06 July, 2012
Updated: 30 September, 2023
Model: GEX-P900XM
MD5 checksum: 9BABC089E4A403CAC002B9849080D2BD
PDF: Pioneer GEX-P900XM Installation Guide PDF

About this manual

This guide provides instructions for installing the Pioneer GEX-P900XM unit in a vehicle. It details safety precautions regarding battery connection and wiring routing to prevent short circuits and damage. The document specifies correct cable colors for IP-BUS connections and warns against modifying leads or tapping into power supplies.

What's inside

Connecting the Units
Connection Diagram
Protect the Antenna Connector
Installing the Unit
Mounting with Brackets

Specifications

Battery Voltage	12-volt
Grounding Type	negative grounding
Fuse Rating	prescribed on the fuse holder

Frequently asked questions

What battery voltage is required for this unit?

The unit is designed for vehicles with a 12-volt battery.

How should the IP-BUS connector be connected?

Connect the input side (blue) and output side (black) correctly.

Where should wiring be routed to avoid damage?

Do not route wiring near the heater outlet or in places that get hot.
