SINAMICS is a generation of the best frequency converters that can adapt to various tasks. It has a wide range of power and voltage, a common software and hardware platform, and simple and flexible engineering configuration, suitable for various application scenarios.

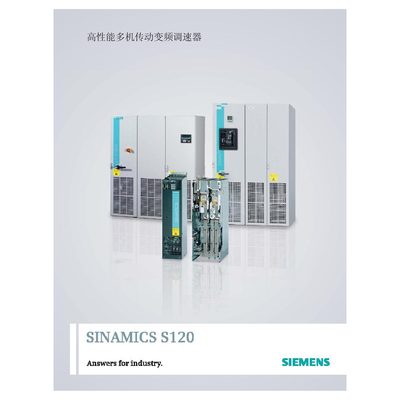

The SINAMICS S120 is a high‑performance inverter family for both single‑machine and multi‑machine applications. It offers a wide power range from 0.12 kW up to 120 MW and a voltage range from 220 V to 10 kV, with modular hardware that can be combined to suit various tasks.
The device supports standard communication protocols such as PROFIBUS DP and PROFINET, and includes integrated safety functions like safe‑torque‑off and safe‑stop. Configuration is performed with the SIZER tool for selection and the STARTER tool for parameterisation and debugging. This manual is written in Chinese.
| Power range | 0.12 kW to 120 MW |
|---|---|
| Voltage range | 220 V to 10 kV |
| Single‑machine AC/AC power (230 V) | 0.12 kW to 0.7 kW |
| Multi‑machine DC/AC power (380‑480 V) | 1.6 kW to 3000 kW |
One control unit can manage up to four drives at the same time.
Configuration uses the SIZER tool for selection and the STARTER tool for parameterisation and debugging.
