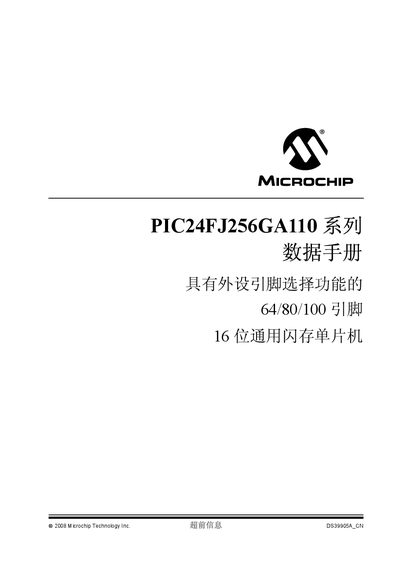

This datasheet contains detailed information about the PIC24FJ256GA110, a 64/80/100-pin 16-bit general-purpose flash microcontroller.
The document provides a complete description of the PIC24FJ256GA110 family, including core architecture, memory organization, peripheral features, and package options. It outlines the 16‑bit Harvard architecture, up to 16 MIPS performance, and the range of operating voltages.
Key sections cover power‑management options, oscillator configurations, pin‑selection capabilities, and detailed specifications for analog and digital peripherals such as ADC, UART, SPI, I²C, and the Charge‑Time Measurement Unit (CTMU). The data sheet also includes mechanical drawings, pin‑out tables, and ordering information.
| Core Architecture | 16‑bit Harvard architecture |
|---|---|
| Maximum CPU Speed | 16 MIPS @ 32 MHz |
| Flash Memory | 256 KB |
| ADC Resolution | 10‑bit |
| Oscillator Options | 5 options (external crystal, external clock, FRC, PLL, LPRC) |
The core can run up to 16 MIPS when clocked at 32 MHz.
The device includes a 10‑bit ADC with programmable acquisition time and multiple channels.
Most digital peripherals can be mapped to any I/O pin, allowing flexible pin‑selection for the device.
