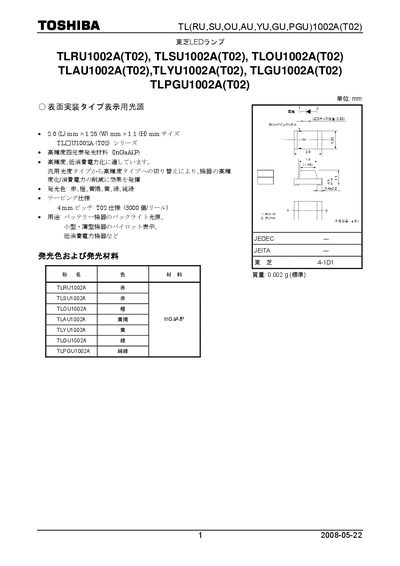

TLRU1002A(T02), TLSU1002A(T02), TLOU1002A(T02), TLAU1002A(T02), TLYU1002A(T02), TLGU1002A(T02), TLPGU1002A(T02) are different models of Toshiba LED lamps. They are surface mount type light sources with dimensions of 2.0mm×1.25mm×1.1mm. These LED lamps are suitable for use as backlight sources in battery devices, indicator lights in small and thin devices, and low power consumption devices. They have different emitting colors, including red, orange, yellow-brown, yellow, green, and pure green.
The TL(RU,SU,OU,AU,YU,GU,PGU)1002A(T02) series are surface‑mount LED lamps designed for high‑brightness, low‑power display applications such as backlights for battery‑powered devices and thin‑form factor pilot indicators. The family includes red, yellow, green and pure‑green variants using a high‑luminance four‑element GaAsP material.
This datasheet provides the absolute maximum ratings, typical electrical characteristics (forward voltage, reverse current, forward current), optical performance (luminous intensity, peak wavelength, intensity rank), and packaging details including reel and carton quantities. Handling precautions and usage limits are also listed. This manual is written in Japanese.
| Package type | Surface‑mount display light source |
|---|---|
| Mass | 0.002 g (standard) |
| Test forward current | 20 mA |
| Minimum luminous intensity | 4.76 mcd |
| Carton packaging quantity | 15 000 pcs per carton |
All optical and electrical curves are measured at a forward current of 20 mA.
