The HP ProLiant DL365 G5 server is a high-density rack server based on the cabinet optimization mode. It adopts the brand-new AMD quad-core processor, up to 32GB of DDR 2-800MHz memory, and PCI-E technology to provide strong IO performance for dual-processor systems. In a 1U high server, it supports 6 2.5-inch SAS or SATA hard drives. It can be applied to data centers and a variety of application environments, and integrates excellent remote management functions and high processing performance.
The HP ProLiant DL365 G5 is a high‑density 1U rack server designed for enterprise workloads, featuring AMD four‑core processors, up to 32 GB DDR2 memory, and up to six hot‑swap 2.5‑inch SAS/SATA drives. It includes integrated Lights‑Out 2 (iLO 2) remote management, redundant power and fans, and a range of optional storage and networking options.

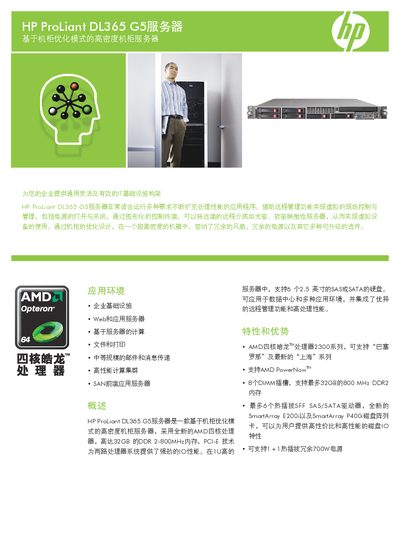

The manual covers standard configurations, technical specifications, power and cooling requirements, remote management capabilities, service and support options, and rack installation guidelines, helping administrators deploy and maintain the server in data‑center environments. This manual is written in Chinese.
| Processor | AMD four‑core Opteron 2384 (2.7 GHz, 75 W) |
|---|---|
| Maximum Memory | 32 GB DDR2 (8 × 4 GB DIMMs) |
| Drive Bays | Six hot‑swap 2.5‑inch SAS or SATA drives |
| Power Supply | Redundant 700 W (1+1) power supplies |
| Remote Management | Integrated Lights‑Out 2 (iLO 2) |
The server supports up to 32 GB of DDR2 memory using eight 4 GB DIMMs.
It can hold up to six 2.5‑inch hot‑swap SAS or SATA drives.
The server includes integrated Lights‑Out 2 (iLO 2) for remote console, power control, and media redirection.
Redundant 700 W power supplies are available in a 1+1 configuration.
