This document introduces the features and characteristics of the SSUUNN W WAAYY TFT LCD control card model SWT2013TT, including input signals, supported modes, color depth, output signals, audio output power, control buttons, OSD menu, power input, power operation, power consumption, and dimensions.

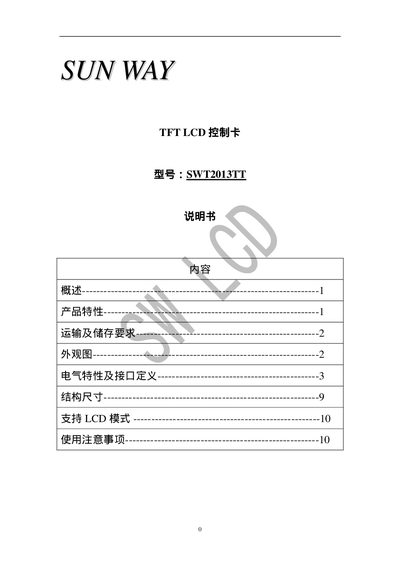

This manual describes the Sun Way SWT2013TT TFT LCD control card, which receives analog RGB input and converts it to the control signals required by TFT LCD panels. It supports resolutions up to SXGA, 24‑bit colour, and both TTL and LVDS output standards.
The document includes transport and storage requirements, a detailed pin‑out diagram, electrical characteristics, dimensions (110 mm × 82 mm × 16 mm), power specifications (12 V input, 3 W idle consumption, < 3 W standby), and precautions for proper connection and operation of the LCD panel. This manual is written in Chinese.
| Maximum resolution | SXGA (1280×1024) |
|---|---|
| Input signal | Analog RGB |
| Supported modes | DCb, VGA, SVGA, XGA, SXGA |
| Colour depth | 24 bit |
| Row sync range | 30‑85 kHz |
| Output signals | TTL (single/dual), LVDS (single/dual) |
| Power input | 12 V |
| Power consumption (no load) | 3.0 W |
| Standby power consumption | < 3 W |
| Dimensions | 110 mm × 82 mm × 16 mm |
The card supports up to SXGA resolution (1280 × 1024).
It consumes about 3.0 W with no load.
