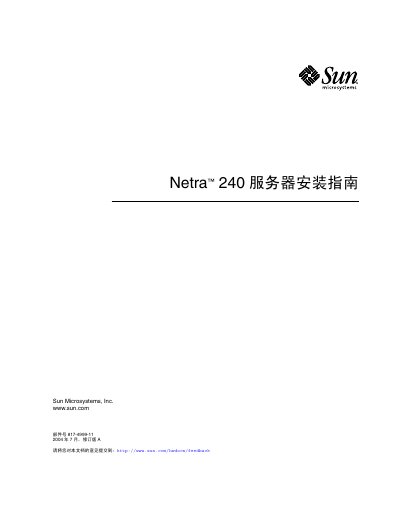

This document provides the installation guide for the Netra™ 240 server by Sun Microsystems, Inc. It includes information about the server's components, configuration, included items, and software support.
This guide explains how to install and configure the Sun Netra 240 server. It covers rack‑mount options, optional components, cable wiring, power connections, and console access, as well as environmental and safety requirements.
Key sections include installation overview, rack‑mount procedures for various chassis sizes, detailed wiring diagrams for data, power, and management ports, power‑supply specifications, and initial system configuration using the Advanced Lights Out Manager (ALOM) and terminal server access.
| Operating temperature (DC server) | 5°C to 40°C (41°F to 104°F) |
|---|---|
| Short‑term temperature range (DC server) | -5°C to 55°C (-23°F to 131°F) |
| Relative humidity (DC server) | 5% to 85% (no condensation) |
| DC input voltage range | -40 VDC to -75 VDC |
| Maximum DC input current | < 15 A |
| Maximum DC input power | 570 W |
| AC input voltage range | 90 V to 264 V AC |
| Maximum AC input power | 550 W |
The server can operate from 5 °C (41 °F) up to 40 °C (104 °F), with a short‑term range of –5 °C to 55 °C.
The DC version requires an input voltage between –40 VDC and –75 VDC, a maximum current below 15 A, and a maximum power of 570 W.
Connect the server to a terminal server and use the provided console access procedures described in the "Setup System Console Device" section.
After receipt, place the server in its installation environment and allow it to sit for 24 hours before powering on to avoid thermal shock and condensation.
