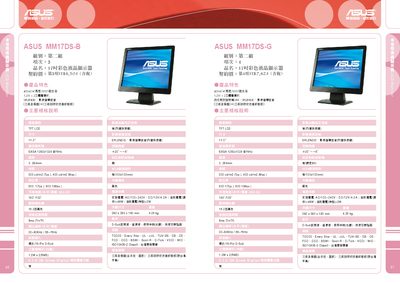

The document introduces the main specifications and features of the ASUS MM17DS-B and ASUS MM17DS-G 17-inch color LCD monitors. They have high brightness, high contrast ratio, stereo speakers, anti-reflection scratch-resistant glass, etc. They support multiple display resolutions and have wide viewing angles and fast LCD response times. At the same time, these two monitors also have SPLENDIDTM image intelligence technology and various adjustment functions.
The ASUS MM17DS-B is a 17‑inch color LCD monitor featuring SPLENDID imaging technology, SXGA 1280x1024 resolution at 75 Hz, 300 cd/m² typical brightness (400 cd/m² max), 500:1‑600:1 contrast ratio, 16.2 million colors and an 8 ms response time.
It provides an analog 15‑pin D‑Sub video input, operates from AC 100‑240 V or DC 12 V / 4.2 A, with operating power under 48 W and standby power around 2 W. The unit measures 380 × 390 × 180 mm, weighs 4.25 kg, comes in black, and includes a three‑year full warranty with three‑year on‑site service. This manual is written in Japanese.
| Screen size | 17.0" |
|---|---|
| Resolution | SXGA 1280x1024 @75Hz |
| Brightness (typical) | 300 cd/m² |
| Brightness (maximum) | 400 cd/m² |
| Contrast ratio | 500:1 (Typ.) / 600:1 (Max.) |
| Color depth | 16.2 million colors |
| Response time | 8 ms (Tr+Tf) |
| Power consumption (operating) | <48 W |
| Power consumption (standby) | ≈2 W |
| Power input | AC 100‑240 V / DC 12 V / 4.2 A |
| Dimensions (W×H×D) | 380 × 390 × 180 mm |
| Video interface | Analog 15‑Pin D‑Sub |
| Warranty | Three years full warranty and three‑year on‑site service |
The monitor has a 17.0‑inch display.
It can reach up to 400 cd/m².
It can be powered from AC 100‑240 V or DC 12 V / 4.2 A, with operating power under 48 W and standby around 2 W.
Yes, it comes with a three‑year full warranty and three‑year on‑site service.
