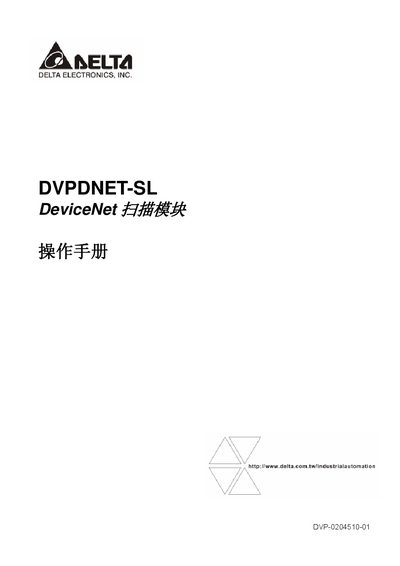

DVPDNET-SL is a DeviceNet scanning module with an open-type casing and features such as functional specifications, installation, basic operations, and settings.
The DVPDNET‑SL is a DeviceNet scan module designed for integration with Delta SV PLCs. It can operate as a DeviceNet master or slave, providing explicit messaging, I/O polling, bit‑strobed and cyclic data exchange. The module connects to the PLC via a DIN rail and communicates over a CAN‑based DeviceNet network.
The manual details safety precautions, hardware dimensions, wiring, address and function switches, LED status meanings, numeric display codes, and step‑by‑step procedures for installing, configuring, and troubleshooting the module in an industrial automation system. This manual is written in Chinese.
| Transmission method | CAN |
|---|---|
| Typical current | 28 mA |
| Serial transmission speed | 125 kbps, 250 kbps, 500 kbps |
| Operating temperature | 0 °C ~ 55 °C |
The POWER LED shows whether the module’s power supply is normal. The NS and MS LEDs indicate the communication status with the DeviceNet network, with different colors and blinking patterns for normal operation, no connection, errors, or address conflicts.
