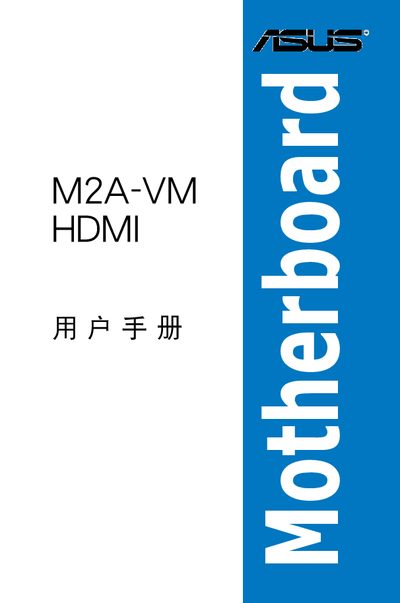

This document is the user manual for the ASUS M2A-VM HDMI motherboard, describing the features and characteristics of the motherboard.
This manual covers everything needed to install and configure the ASUS M2A-VM HDMI motherboard, including safety precautions, hardware layout, CPU and memory installation, and expansion slot usage. It also explains jumper settings, BIOS options, and the included software utilities.
Additional sections describe the motherboard specifications, supported processors, memory limits, graphics outputs, audio codec, and how to obtain further product information or technical support from ASUS. This manual is written in Chinese.
| CPU socket | Socket AM2 |
|---|---|
| Supported processors | AMD Athlon™ 64FX / Athlon™ 64 X2 / Athlon™ 64 / Sempron™ |
| Chipset | Northbridge AMD 690G, Southbridge ATI SB600 |
| Integrated graphics | ATI Radeon X1250, shared memory up to 256 MB |
| HDMI output | Supports HDMI with HDCP, max resolution 1920 × 1080 |
| DVI‑D output | Digital output up to 2560 × 1600 @60 Hz |
| Audio codec | Realtek ALC883 6‑channel high‑fidelity codec |
It uses a Socket AM2 CPU socket.
The board uses a Realtek ALC883 six‑channel high‑fidelity audio codec.
